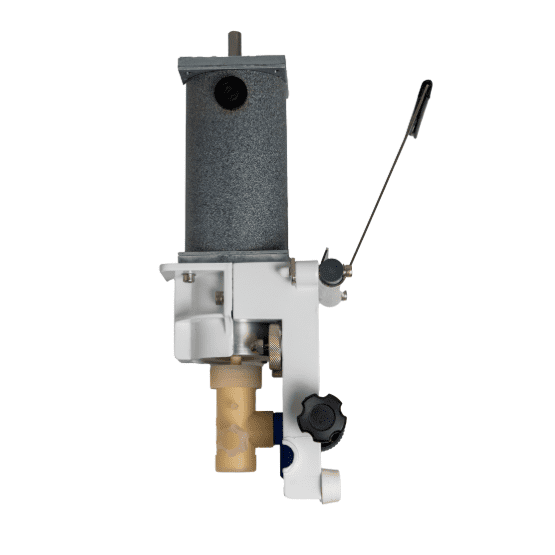

Side view of an industrial mechanical pump with a gray cylinder motor, white housing, beige pump head, and a thin metal mounting base

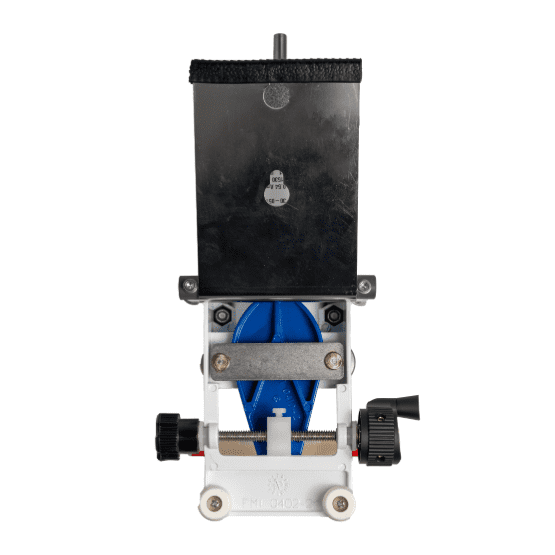

Back view of a mechanical pump assembly with a metal mounting plate, blue tear-shaped pump head base, and a black adjustment knob

*Image is only shown with the QCKC pump head

QV Laboratory Pump

Ideal for Automated Process Control

The QV automated process control pump is a variable speed pump that offers exceptional accuracy and control. By eliminating valves, it minimizes downtime and the need for re-calibration. Its long term, drift free performance ensures millions of “trouble-free” cycles at 1% precision or better.

  • Positive displacement maintains consistent output flow even against discharge pressures.
  • Long-life, fan cooled, thermally protected gear motors ensure durability and reliable performance.
  • Infinitely adjustable flow rates allow for precise fluid control, essential for dosing and metering.
  • Modular design allows for easy adaption to different requirements and quick replacement of components.

Note: When ordering, the pump drive and head will be priced separately

Product Details

Motor Speed Range Dispense Volume Range Flow Rate Range

90-1800 rpm

0-1.28 mL/rev1, 2

0-2304 mL/min1, 2

Specifications

Operating Pressure Range

0-100 psi (0-6.89 bar)1, 2

Motor Type

90V DC

120 or 240V AC with V300 Controller

Regulatory Compliance

Certification logo with an abstract 'RU' symbol, 'c' on the left, and 'us' on the right Green check mark and "RoHS compliant" text inside a circle REACH compliant logo with a blue circular design and a green checkmarkCE marking logo



Disclaimer

The performance of Fluid Metering pumps may vary based on specific application conditions and individual user setups. We recommend consulting with a qualified professional or our technical support team for assistance tailored to your specific needs.

1 The dispense volume and flow rate vary based on the specific pump head and motor setup.

2 Pressure ratings dependent on selected pump heads.
