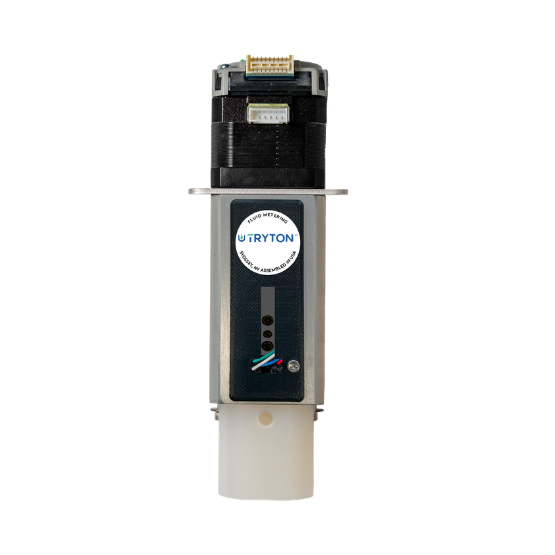

Fluid metering pump device with black upper section, white and blue middle section, and off-white cylindrical bottom

Fluid metering pump device with black upper section, white and blue middle section, and off-white cylindrical bottom

A rectangular mechanical pump component with metallic, plastic, and dark segments

Mechanical pump component with a brushed metal body, black cylindrical top, and white cylindrical base

Pulseless Flow Nanoliter Dispensing Pump

A compact, linearly driven, ceramic piston pump, capable of dispensing less than 1 microliter with exceptional precision and accuracy. A vastly optimized driving mechanism means TRYTON has only THREE moving components. Plus, Fluid Metering’s distinct CeramPump® technology ensures a longer lifetime and superior chemical inertness.

Download Product Sheet

Download Drawing

Dispense Volume Range	Flow Rate Range	Dispense Resolution	Motor Speed Range
0 - 150 µL	Minimum 0.105 µL/sec @ 1 rpm; Maximum 62.8 µL/sec @ 600 rpm	0.031 µL/Full Step	Up to 2000 step/sec

Specifications

Motor Frame

Linear: NEMA 17 (43mm)

Electrical (Rated Current)

1.5A

Operating Temperature Range

-20°C to 50°C (-4°F to 122°F)

Operating Pressure Range

0-100 psi (0-6.89 bar)¹

Software

Download our controller software to install and configure the pump into your system.

FAQ's

Explore the answers to the top questions we receive about the TRYTON.

Regulatory Compliance

What's Included in the Development Kit?

(1) Carry Case
(1) TRYTON Pulseless Nanoliter Pump
(1) Controller Box
(1) Power Supply + Line Cord
(1) RS232 to USB Connection Cable
(1) Motor Extension Cable
(1) Sensor Extension Cable
(1) 1-to-4-way Power Splitter Cable
(1) Luer Adapter
(2) Tubing (FEP, 1/16” ID x 1/8” OD)
(2) Dispense Tips (1 blue, 1 red smooth flow tapered tip)
(2) Solenoid Valve
(2) Power Switch
(2) Female Barrel Jack to Splitter Cable
(8) Tubing Ferrule (Yellow)
(8) Tubing Ferrule Nut (Green)
