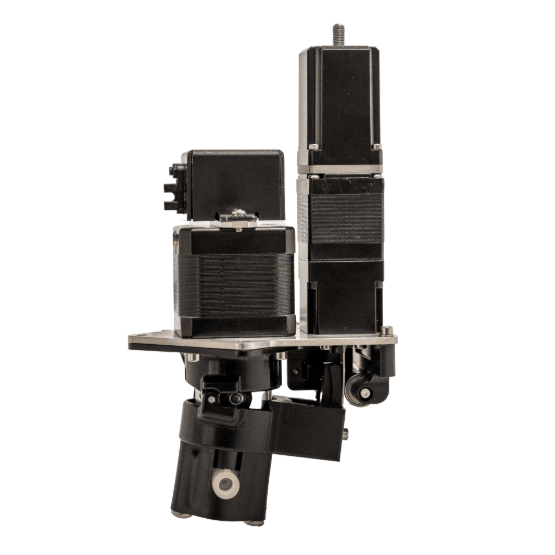

Mechanical assembly with black motor and black linear actuator units on a metallic base plate, attached to a cylindrical component below
Mechanical assembly with black motor and black linear actuator units on a metallic base plate, attached to a cylindrical component below

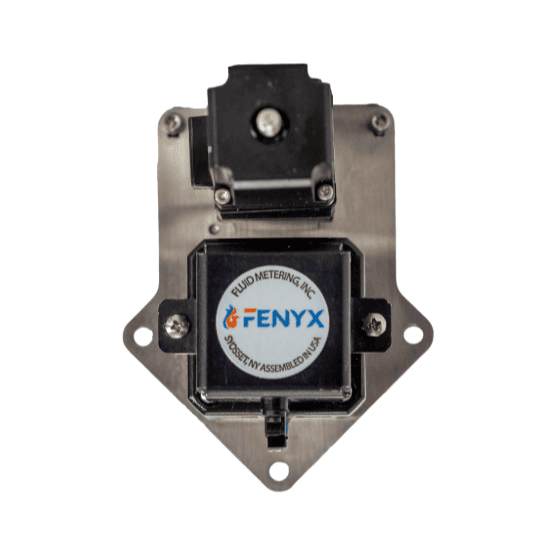

Rectangular electronic component with a black top section and a circular label with FENYX Variable Dispense logo, mounted on a metallic plate

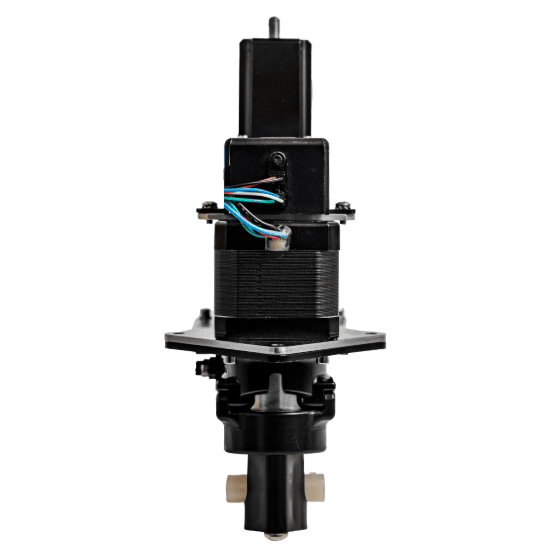

Black electric motor with a rectangular top, colored wires, and cylindrical central housing

FENYX logo with a stylized orange and blue phoenix icon

Variable Dispense Pump

FENYX™ Variable Dispense Pump combines the function of priming, flushing, and dispensing into one device, which provides accurate and repeatable dispense volumes of 1 to 400 µL in a small lightweight package.

Product Details

The innovative, low-profile design offers unparalleled accuracy and precision with an electrical and mechanical upgrade that can dispense multiple volumes with the same pump. FENYX Variable Dispense Pump is available in three configurable options1 and is an ideal solution for OEM Medical and Life Sciences Markets.

Available Options Dispense Volume Range (μl/rev) Flow Rate Range (mL/min)

FENYX-100

0.75-110 μl/rev

0.00075-110 mL/min

FENYX-200

2-200 μl/rev

0.002-200 mL/min

FENYX-400

4-400 μl/rev

0.004-400 mL/min

Specifications

FENYX-100, FENYX-200, FENYX-400

Motor Type

Rotational: NEMA 17 (43mm)
Linear: NEMA 11 (28mm)

Motor Speed

Rotational: Up to 1000 rpm
Linear: Up to 1900 rpm

Electrical (Rated Current)

Rotational: 2.0A
Linear: 1.0A

Operating Temperature Range

0°C to 50°C (32°F to 122°F)

Operating Pressure Range

0-30 psig (0-2.1 bar)2

Non-Contact Dispensing

FENYX Variable Dispense pump offers non-contact capabilities down to 4µL. Eliminate the need for probe tip changes and washing, resulting in streamlined accuracy, efficiency, and precision.

Software

Download our controller software to install and configure the pump into your system.

FAQ's

Explore the answers to the top questions we receive about FENYX Variable Dispense Pump.

Regulatory Compliance

Green check mark and "RoHS compliant" text inside a circle REACH compliant logo with a blue circular design and a green checkmark



Testing Units Available for 90-Day Trial

OEMs interested in testing FENYX's capabilities for their new or existing applications can request a Development Kit. These kits include one test pump, tubing, adapters, and other accessories to get you running easily in any testing environment.

What's Included in the Development Kit?

(1) Carry Case
(1) FENYX Variable Dispense Pump
(1) Controller Box
(1) Power Supply + Line Cord
(1) Luer Adapter
(2) RS232 to USB Connection Cable
(2) Motor Extension Cable
(2) Sensor Extension Cable
(2) Dispense Tips (1 blue, 1 red smooth flow tapered tip)
(2) Tubing (FEP, 1/16” ID x 1/8” OD)
(4) Tubing Ferrule (Yellow)
(4) Tubing Ferrule Nut (Green)

Request Information

Disclaimer

1 The performance of Fluid Metering pumps may vary based on specific application conditions and individual user setups. We recommend consulting with a qualified professional or our technical support team for assistance tailored to your specific needs.

2 Ratings dependent on selected pump heads.
