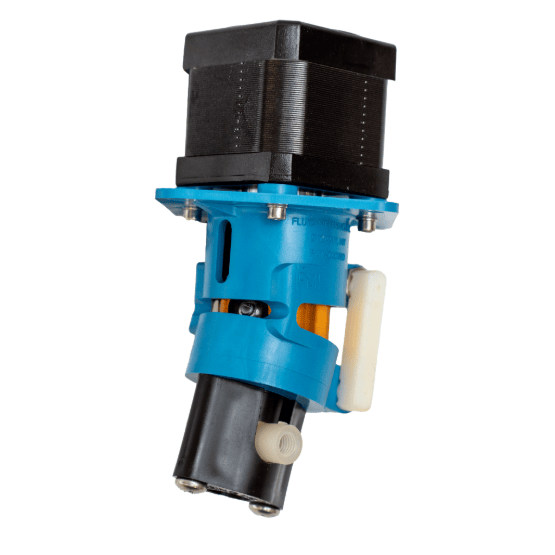

Mechanical pump component with a black motor on top, blue cylindrical body with golden coil, and white tubing connectors on the side

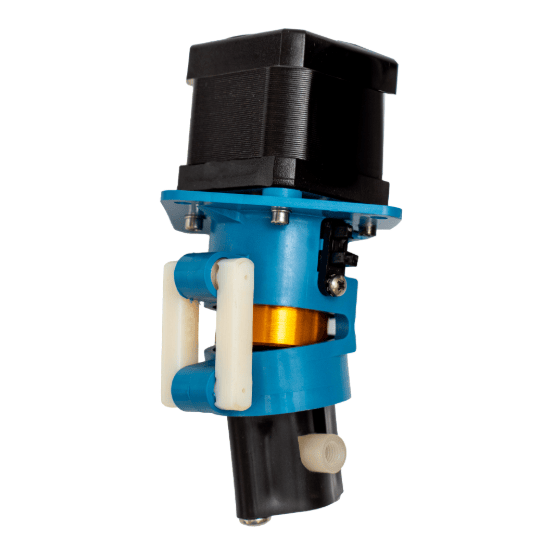

Mechanical pump component with a black motor on top, blue cylindrical body with golden coil, and white tubing connectors on the side
Mechanical pump component with electric motor with black, blue, and off-white components

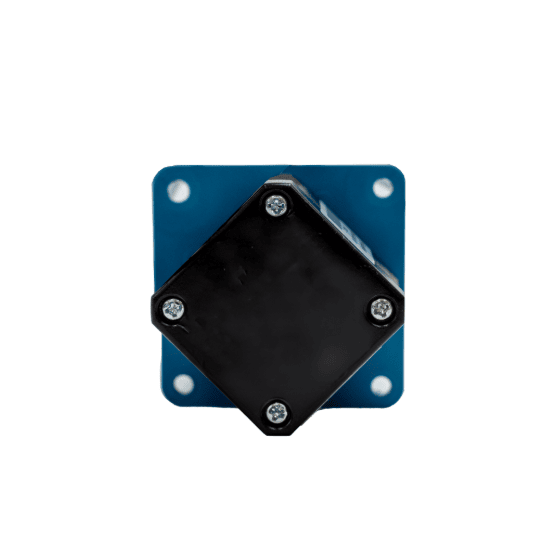

Black square electronic component with four screws on a blue rectangular base

STF

Positive Displacement Adjustable Dispensing Pump

The STF is an advanced miniaturized fluidic system designed to control small volumes of fluid at the microscale level for a broad range of applications. It is currently available in standard drive configurations ranging from 5 μl through 400 μl in 1 μl increments.

Product Details

Dispense Volume Range (μl/rev) Flow Rate Range (mL/min) Motor Speed Range

5-400 μl/rev1

0.005-400 mL/min1

Rotational: Up to 1000 RPM

Specifications

Motor Frame

Rotational: NEMA 17 (43mm)

Electrical (Rated Current)

Rotational: 2.0 A

Operating Temperature Range

0°C to 50°C (32°F to 122°F)

Operating Pressure Range

0-100 PSIG (0-6.89 Bar)

Software

Download our controller software to install and configure the pump into your system.

FAQ's

Explore the answers to the top questions we receive about the STF.

Regulatory Compliance

Green check mark and "RoHS compliant" text inside a circle REACH compliant logo with a blue circular design and a green checkmark



Can This Pump Be Customized?

Yes, we understand that each application has its own unique specifications. That’s why we offer a customizable range of pumps, allowing you to select your desired components, such as, seals, wetted materials, and motors. While our website features standard OEM models, the true power of Fluid Metering’s products lies in our ability to work with you to design a solution tailored to your exact requirements. Our knowledgeable engineering team are here to support and guide you from start to finish in developing a pump that meets your specific needs.

Disclaimer

The performance of Fluid Metering pumps may vary based on specific application conditions and individual user setups. We recommend consulting with a qualified professional or our technical support team for assistance tailored to your specific needs.

1 The dispense volume and flow rate vary based on the specific pump head and motor setup.
