Pulseless Nanoliter Pump

Providing laminar flow at sub-microliter dispense volumes

Our custom anti-backlash mechanism prevents step loss and maintains its resolution, even after 1 million cycles.

Fluid Metering's FDD Direct Drive with a black top, light blue and white label, blue text, and white cylindrical bottom

TRYTON Pulseless Nanoliter Pump

Benefits

  1. Small volume dispense of 500 nL
  2. Chemical inertness
  3. Lowers cost of installation
  4. Pulseless “smooth” flow with up to 98% stability

Features

  1. Three moving components
  2. High precision, fine pitch lead screw
  3. Optical sensor
  4. Rotary encoder with over 4000 pulses per revolution

Interested in Testing Before Purchasing?

Fluid Metering offers a unique 90-day trial for life science and medical OEMs to test the pump's accuracy, precision, and pulseless flow at the convenience of their workstations. Our development kits are packed with the essentials to get you up-and-running quickly.

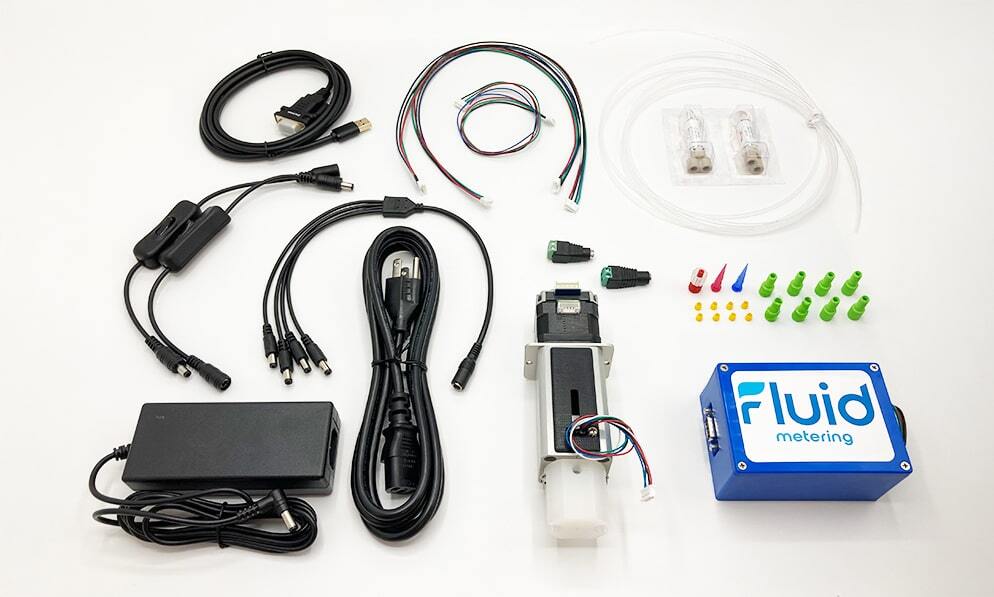

What's Included in the Development Kit?

(1) Carry Case
(1) TRYTON Pulseless Nanoliter Pump
(1) Controller Box
(1) Power Supply + Line Cord
(1) RS232 to USB Connection Cable
(1) Motor Extension Cable
(1) Sensor Extension Cable
(1) 1-to-4-way Power Splitter Cable
(1) Luer Adapter
(2) Tubing (FEP, 1/16” ID x 1/8” OD)
(2) Dispense Tips (1 blue, 1 red smooth flow tapered tip)
(2) Solenoid Valve
(2) Power Switch
(2) Female Barrel Jack to Splitter Cable
(8) Tubing Ferrule (Yellow)
(8) Tubing Ferrule Nut (Green)

FDD_Product_Development_Kit_Contents

Read More About the Benefits of Pulseless Nanoliter Pumps

Pulseless Nanoliter Resolution for Massive OEM Impacts

The Advantages of Non-Contact Dispensing

Contact Us

We're committed to providing you with the right fluidic pump solution for your specific application needs.
