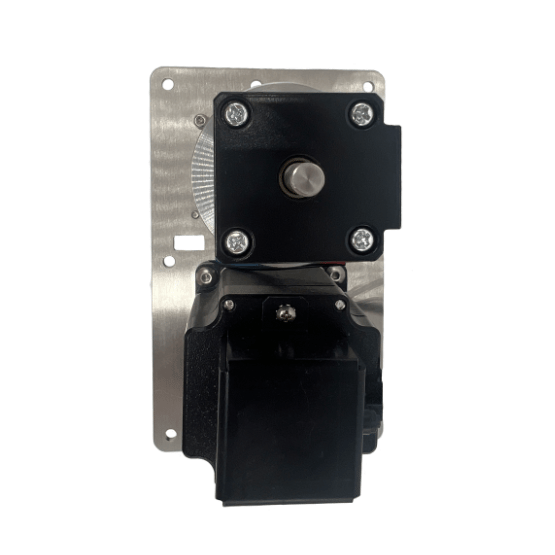

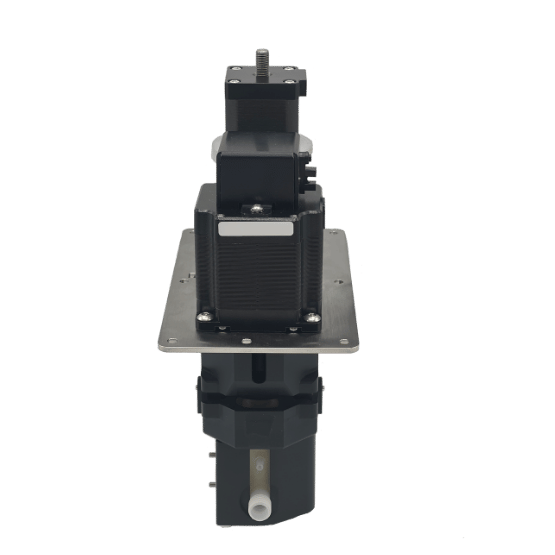

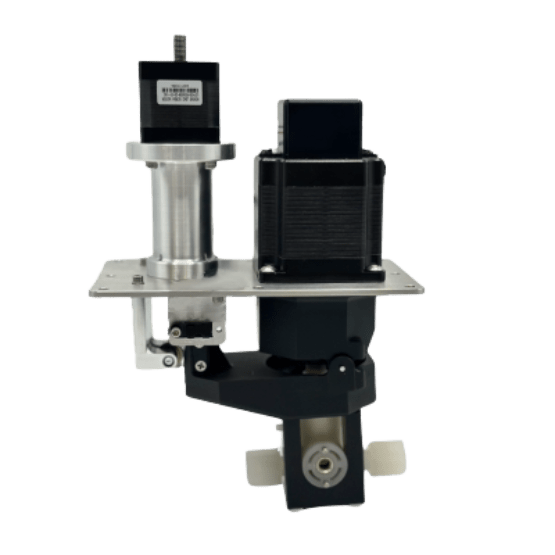

Mechanical assembly with black motor and metal linear actuator units on a metallic base plate, attached to a cylindrical component below

Variable Dispense Pump

The FENYX+™ Variable Dispense pump builds upon the proven performance of its predecessor by significantly expanding its flow range and enhancing versatility. Engineered to meet the evolving demands of the life sciences sector, this next-generation pump delivers precise and reliable fluid handling across a broad spectrum of applications.

Download Product Sheet

Speak with an Engineer

Available Options	Dispense Volume Range (μl/rev)	Flow Rate Range (mL/min)
FENYX+	250-1150 μl/rev	0.25-1322.5 mL/min

Specifications

Motor Type

Rotational: NEMA 23 (57mm)
Linear: NEMA 14 (35mm)

Motor Speed

Rotational: Up to 1150 rpm
Linear: Up to 1750 rpm

Electrical (Rated Current)

Rotational: 4.2A
Linear: 1.5A

Operating Temperature Range

0°C to 50°C (32°F to 122°F)

Operating Pressure Range

0-30 psig (0-2.1 bar)²

Software

Download our controller software to install and configure the pump into your system.

FAQ's

Explore the answers to the top questions we receive about FENYX+ Variable Dispense Pump.

Regulatory Compliance

Disclaimer

¹ The performance of Fluid Metering pumps may vary based on specific application conditions and individual user setups. We recommend consulting with a qualified professional or our technical support team for assistance tailored to your specific needs.

² Ratings dependent on selected pump heads.
