FDD

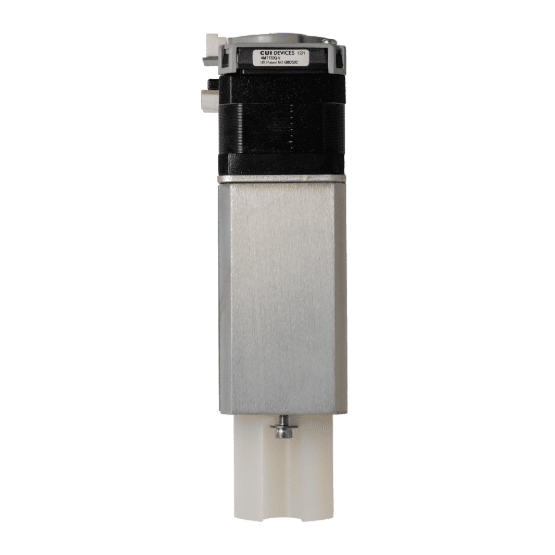

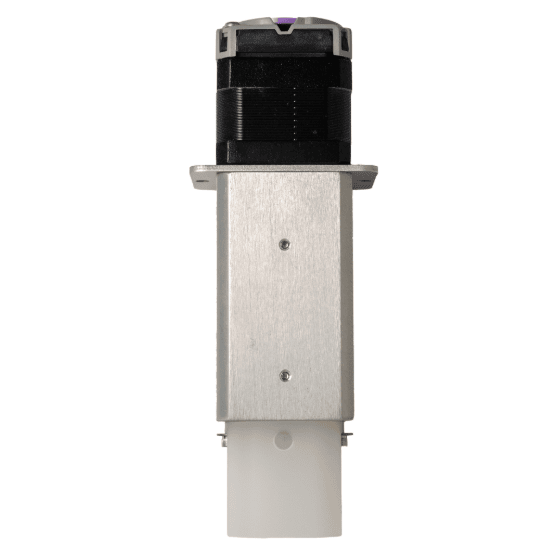

Pulseless Flow Nanoliter Dispensing Pump

A compact, linearly driven, ceramic piston pump, capable of dispensing less than 1 microliter with exceptional precision and accuracy. A vastly optimized driving mechanism means the FDD has only THREE moving components. Plus, Fluid Metering’s distinct CeramPump® technology ensures a longer lifetime and superior chemical inertness.

Download Product Sheet
Request a Development Kit

Product Details
Dispense Volume Range Flow Rate Range Dispense Resolution Motor Speed Range

0 - 150 µL

Minimum 0.105 µL/sec @ 1 rpm;
Maximum 62.8 µL/sec @ 600 rpm

0.031 µL/Full Step

Up to 2000 step/sec

Specifications

Motor Frame

Linear: NEMA 17 (43mm)

Electrical (Rated Current)

1.5 A

Operating Temperature Range

-20°C to 50°C (-4°F to 122°F)

Operating Pressure Range

0-100 PSIG (0-6.89 Bar)1

Software

Download our controller software to install and configure the pump into your system.

FAQ's

Explore the answers to the top questions we receive about the FDD.

Regulatory Compliance

Green check mark and "RoHS compliant" text inside a circle REACH compliant logo with a blue circular design and a green checkmark



Can This Pump Be Customized?

Yes, we understand that each application has its own unique specifications. That’s why we offer a customizable range of pumps, allowing you to select your desired components, such as, seals, wetted materials, and motors. While our website features standard OEM models, the true power of Fluid Metering’s products lies in our ability to work with you to design a solution tailored to your exact requirements. Our knowledgeable engineering team are here to support and guide you from start to finish in developing a pump that meets your specific needs.

Additional Resources


Download Drawing
Request Testing Data
Disclaimer

The performance of Fluid Metering pumps may vary based on specific application conditions and individual user setups. We recommend consulting with a qualified professional or our technical support team for assistance tailored to your specific needs.

1 Ratings dependent on selected pump heads.
