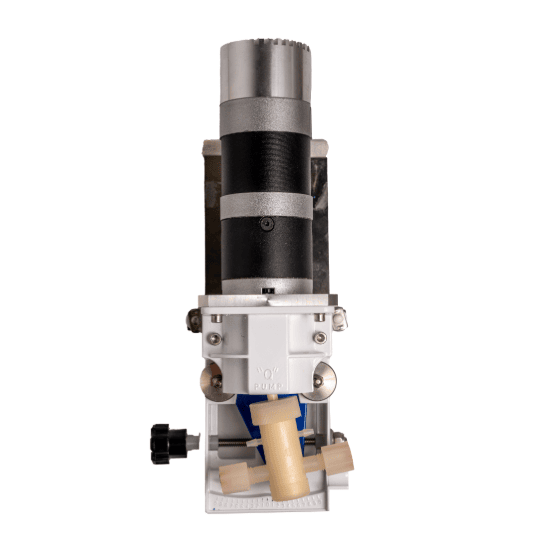

Close-up view of a mechanical pump device with a cylindrical black and metallic motor, white housing, beige pump head, and a black adjustment knob
Close-up view of a mechanical pump device with a cylindrical black and metallic motor, white housing, beige pump head, and a black adjustment knob

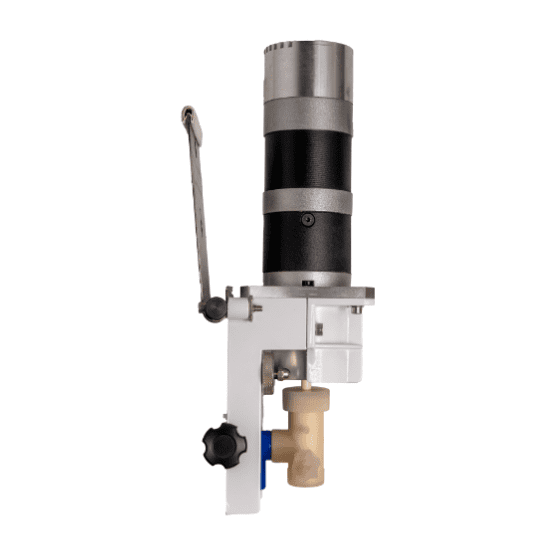

Side view of mechanical pump device with a black and metallic cylindrical top, white housing, beige pump head, and black adjustment knob

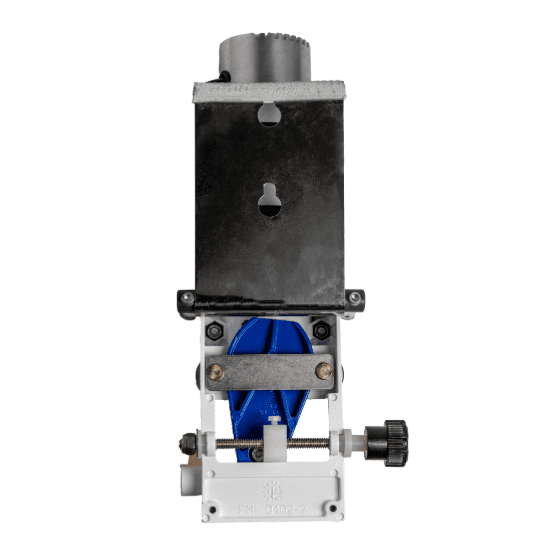

Back view of a mechanical pump assembly with a black metal mounting plate, blue tear-shaped pump head base, and a black adjustment knob

*Image is only shown with the QCKC pump head

QBLDC Laboratory Pump

Available Motor Speeds: 6, 20, 55, 150, 250, 400, 500, & 1550 RPM

Ideal for General Lab and Industrial Use

The QBLDC pump offers a range of features and benefits designed to ensure high accuracy in applications where precise fluid control is critical.

  • Constructed with ceramic and stainless steel, offering broad fluid compatibility, and long-lasting performance.
  • The fluid path is inert and resistant to corrosion, making it suitable for various chemicals.
  • Flexible mounting options make it easy to install in different settings.
  • The efficient motor design helps in reducing energy consumption.
  • Offers interchangeable pump head and drive modules for various flow and material combinations.

Note: When ordering, the pump drive and head will be priced separately

Product Details

Series Name Motor Speed Flow Rate Range (mL/min)

QBLDC6

6 RPM

0.0165-7.04 mL/min1

QBLDC20

20 RPM

0.06-25.6 mL/min1

QBLDC55

55 RPM

0.165-70.4 mL/min1

QBLDC150

150 RPM

0.45-192.0 mL/min1

QBLDC250

250 RPM

0.75-320 mL/min1

QBLDC400

400 RPM

1.2-512 mL/min1

QBLDC500

500 RPM

1.5-640 mL/min1

QBLDC1550

1550 RPM

4.65-1984 mL/min1

Specifications

QBLDC6, QBLDC20, QBLDC55, QBLDC150, QBLDC250, QBLDC400, QBLDC500, QBLDC1550 Motors

Dispense Volume Range

0.003-1.28 mL/rev1

Operating Pressure Range

0-100 PSIG (0-6.89 Bar)

Motor Type

115 or 230 VAC with 50/60 Hz

Electrical

0.5 A

Regulatory Compliance

Certification logo with an abstract 'RU' symbol, 'c' on the left, and 'us' on the right Green check mark and "RoHS compliant" text inside a circle REACH compliant logo with a blue circular design and a green checkmarkCE marking logo



Disclaimer

The performance of Fluid Metering pumps may vary based on specific application conditions and individual user setups. We recommend consulting with a qualified professional or our technical support team for assistance tailored to your specific needs.

1 The dispense volume and flow rate vary based on the specific pump head and motor setup.
