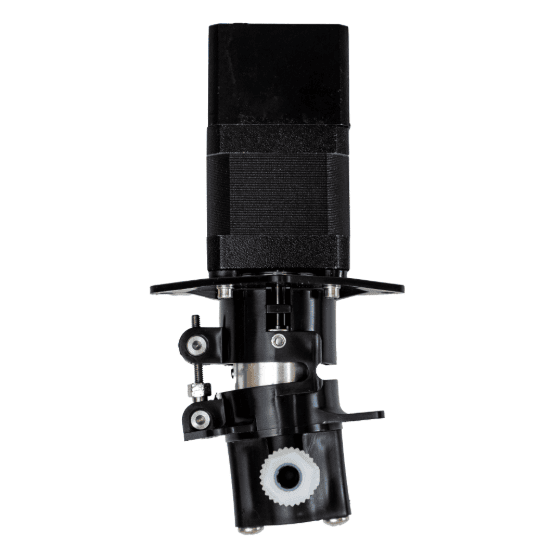

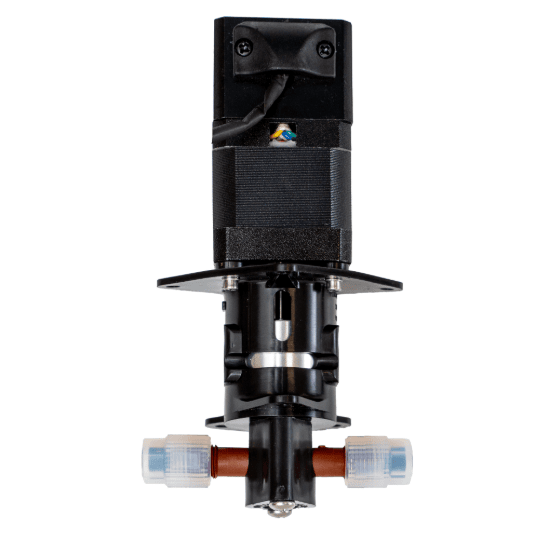

Engineered for metering applications, this pump integrates our distinct CeramPump® valveless pumping technology with the long-life performance of a brushless DC motor and integrated driver electronics. All that is needed is a simple 24VDC input power supply to deliver precision fluid control for process instrumentation.
Dispense Volume Range (mL/rev) | Flow Rate Range (mL/min) | Calibrated Flow Rate |
---|---|---|
0.032-1.28 mL/rev1, 2 |
0.192-2560 mL/min1, 2 |
Pump can be calibrated 20-400mL/min ± 5% |
Fixed Speed Motor and Variable Speed Motor
Fixed Speed Motors: 2000 RPM
Variable Speed Motors: 0-1700 RPM
0.88 A / 2.0 A
20°C to 60°C (68°F to 140°F)
Download our controller software to install and configure the pump into your system.
Explore the answers to the top questions we receive about the Metering Pump.
Yes, we understand that each application has its own unique specifications. That’s why we offer a customizable range of pumps, allowing you to select your desired components, such as, seals, wetted materials, and motors. While our website features standard OEM models, the true power of Fluid Metering’s products lies in our ability to work with you to design a solution tailored to your exact requirements. Our knowledgeable engineering team are here to support and guide you from start to finish in developing a pump that meets your specific needs.
The performance of Fluid Metering pumps may vary based on specific application conditions and individual user setups. We recommend consulting with a qualified professional or our technical support team for assistance tailored to your specific needs.
1 The dispense volume and flow rate vary based on the specific pump head and motor setup.
2 Pressure ratings dependent on selected pump heads.
