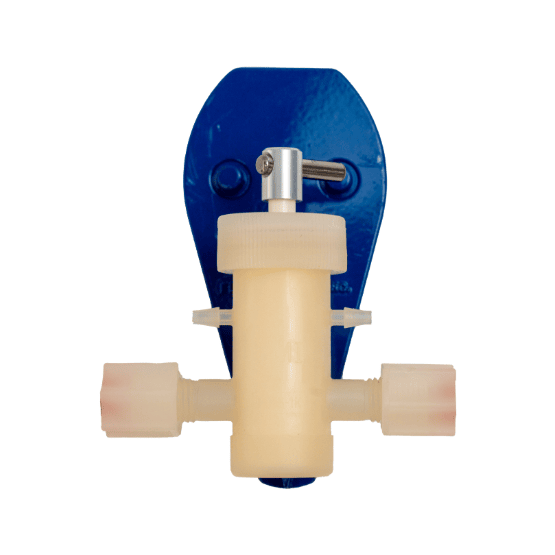

Mechanical pump head component with ceramic T-shaped body mounted on a blue tear-drop-shaped base
Mechanical pump head component with ceramic T-shaped body mounted on a blue tear-drop-shaped base

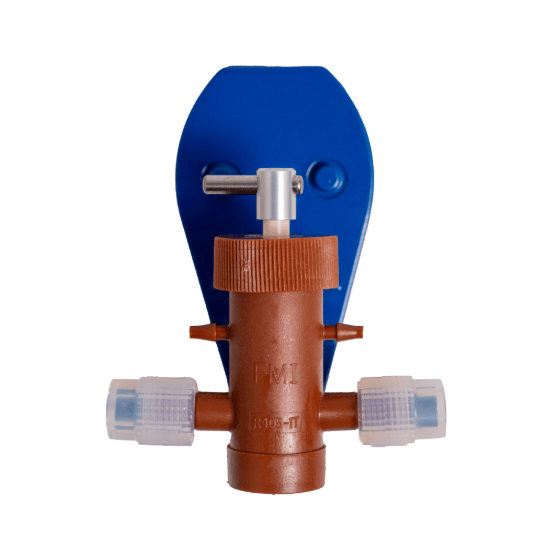

Brown-colored pump head assembly mounted on a blue bracket with a ceramic piston on top and transparent tubing connectors

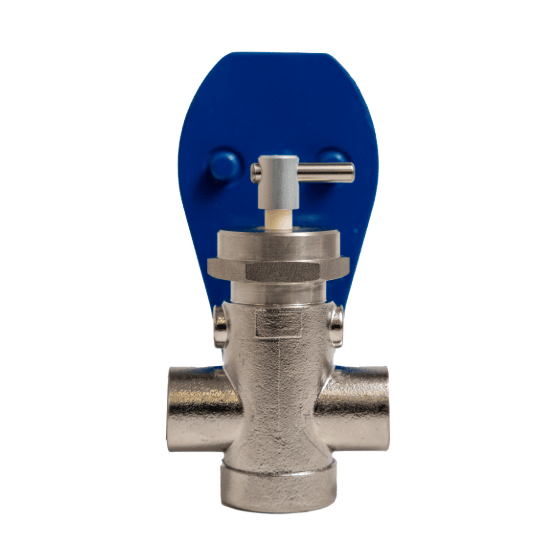

Metal pump head with a T-shaped design, metallic finish, and a blue base in the background

Q Pump Head

Ceramic Piston & Cylinder Liner

Ideal for Laboratory, Analytical, Industrial and OEM applications

The Q pump head is a reliable and versatile choice for precise fluid metering needs. Known for its high accuracy, with a coefficient of variation (CV) of less than or equal to 0.5%. Particularly notable is its ceramic piston design.

  • Constructed from durable materials like ceramics and stainless steel, its highly resistant to corrosion and compatible with a wide range of fluids.
  • One moving part – the ceramic piston minimizes wear and tear, enhancing reliability.
  • With no valves to clog or leak, maintenance and downtime are significantly reduced.
Request a Quote
Download Instruction Manual

Product Details
Piston Size Dispense Resolution (mL/rev) Operating Pressure Range

1/4" DIA.

0.016-0.32 mL/rev1

0-60 psig2
0-4.1 bar

3/8" DIA.

0.036-0.72 mL/rev1

0-60 psig
0-4.1 bar

1/2" DIA.

0.064-1.28 mL/rev1

0-25 psig
0-1.7 bar

Specifications

Cylinder Casing Options
  • PVDF
  • ETFE
  • 316 Stainless Steel
Operating Temperature Range

PVDF & ETFE: 0-100°C (32-212°F)

316 Stainless Steel: 0-177°C (32-350°F)

Pump Drive Modules

Explore our available pump drive modules to reach your desired flow rate. All drives are compatible with our Q Pump Heads.

If you're interested in customizing a laboratory pump, contact us today.

Sanitary Pump Head Option

Check out our QSAN Pump Head designed to meet stringent requirements of hygienic applications.

Customizations

  • Flush ports and isolation glands are available
  • For low flow applications, 1/4-28 UNF threaded ports are available

Regulatory Compliance

Green check mark and "RoHS compliant" text inside a circle REACH compliant logo with a blue circular design and a green checkmark
Disclaimer

The performance of Fluid Metering pumps may vary based on specific application conditions and individual user setups. We recommend consulting with a qualified professional or our technical support team for assistance tailored to your specific needs.

1 The dispense volume varies based on the specific pump head and motor setup.

2 The operating pressure range for the 316 Stainless Steel cylinder casing is 0-100 psig (0-6.9 bar).
