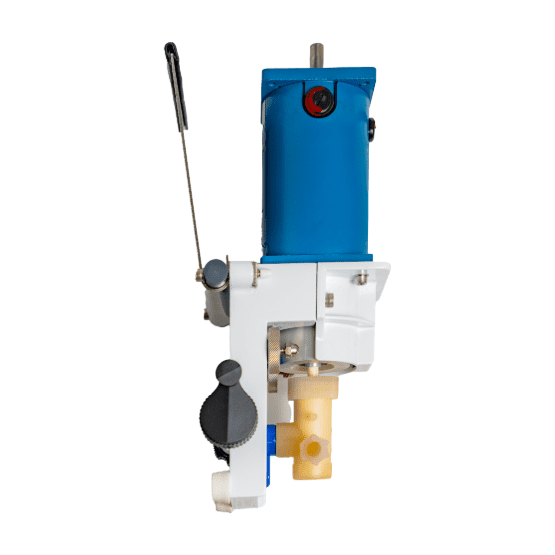

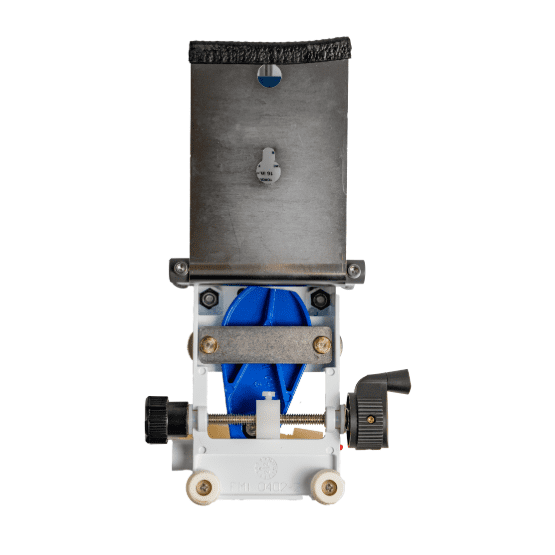

*Image is only shown with the QCKC pump head
Ideal for Mobile, Remote and Instrumentation
The QB pump offers the advantage of mechanical adjustment of stroke length, plus electrical control of stroke rate by voltage variation. Infinitely adjustable flow rates allow for precise fluid control, essential for dosing and metering.
Note: When ordering, the pump drive and pump head will be priced separately
Pump Drive | Motor Type | Electrical (Rated Current) |
---|---|---|
QB Series |
12 V DC1 |
4.0 A |
QB4 Series |
24 V DC |
3.3 A |
QB5 Series |
90 V DC |
0.41 A |
QB, QB4, QB5 Motors
0-1.28 mL/rev2, 4
0-2304 mL/min2, 4
0-100 PSIG (0-6.89 Bar)2, 4
0-1800 RPM3
The performance of Fluid Metering pumps may vary based on specific application conditions and individual user setups. We recommend consulting with a qualified professional or our technical support team for assistance tailored to your specific needs.
1,3 At 12 V DC, the motor runs at 2600 RPM. With a Q Pump Head installed, the motor cannot exceed 1800 RPM (8 V DC).
2 The dispense volume and flow rate vary based on the specific pump head and motor setup.
4 Pressure ratings dependent on selected pump heads.
