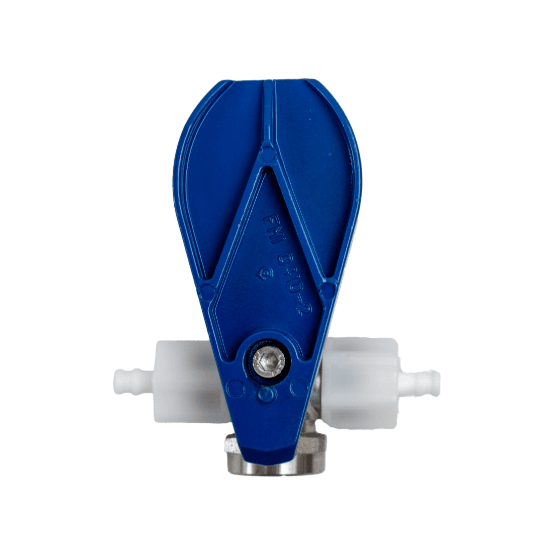

Metal pump head with white connectors on either side and a blue tear-drop-shaped mounting plate
Metal pump head with white connectors on either side and a blue tear-drop-shaped mounting plate

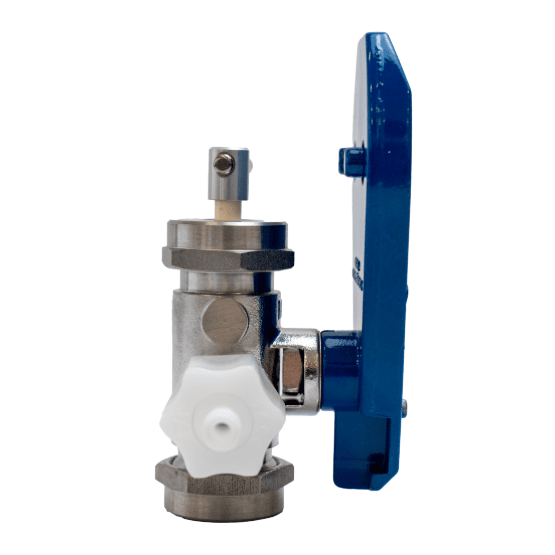

Side-view of metal pump head with white connector and a blue tear-drop-shaped mounting plate
Blue teardrop-shaped base component for the pump head with a central metallic screw

QSAN Pump Head

Sanitary (Ceramic & 316 Stainless Steel) Fluid Path

Ideal for Laboratory, Analytical, Industrial and OEM applications

The QSAN pump head is designed to meet stringent requirements of hygienic applications. It is a versatile and dependable option where a high degree of accuracy and precision in fluid control is most critical.

  • The fluid path is inert and corrosion-resistant, ensuring compatibility with most chemicals.
  • One moving part – the ceramic piston minimizes wear and tear, enhancing reliability.
  • With no valves to clog or leak, maintenance and downtime are significantly reduced.

Product Details

Piston Size Dispense Volume Resolution (mL/rev)

1/4" DIA.

0.016-0.32 mL/rev1

3/8" DIA.

0.036-0.72 mL/rev1

Specifications

Carrier Options
  • Plastic
  • 316 Stainless Steel
Operating Pressure Range

0-60 psig (0-4.1 bar)

Operating Temperature Range

0-177°C (32°F-350°F)

Pump Drive Modules

Explore our available pump drive modules to reach your desired flow rate. All drives are compatible with our QSAN Pump Heads.

If you're interested in customizing a laboratory pump, contact us today.

Customizations

  • Available with flush port and isolation gland
  • For low flow applications, 1/4-28 UNC threaded ports are available

Regulatory Compliance

Green check mark and "RoHS compliant" text inside a circle REACH compliant logo with a blue circular design and a green checkmark

Disclaimer

The performance of Fluid Metering pumps may vary based on specific application conditions and individual user setups. We recommend consulting with a qualified professional or our technical support team for assistance tailored to your specific needs.

1 The dispense volume varies based on the specific pump head and motor setup.
