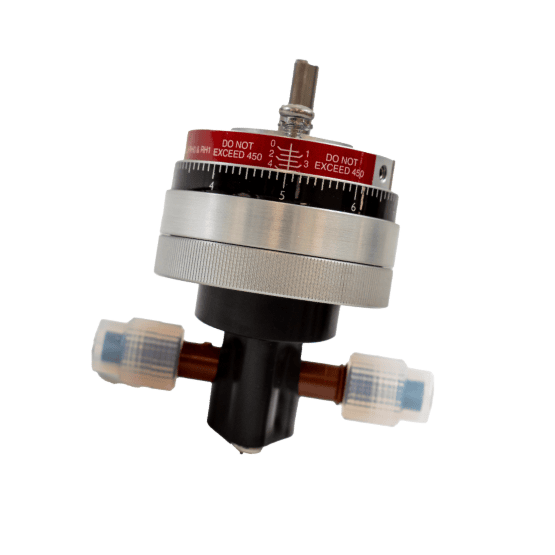

Cylindrical mechanical control pump head dial with red, black, and silver segments, and protruding white-colored connectors

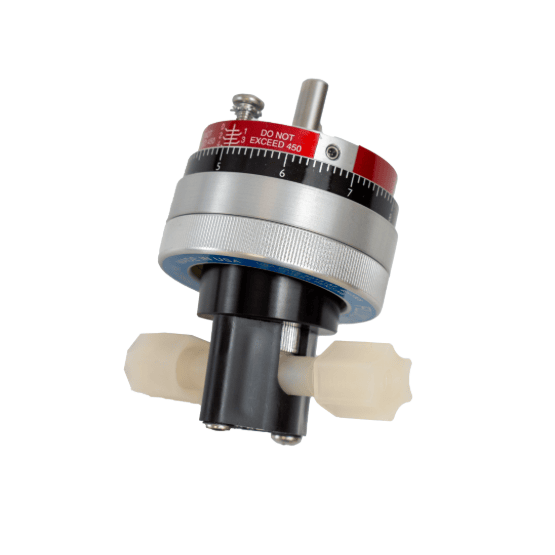

Cylindrical mechanical control pump head dial with red, black, and silver segments, and protruding white-colored connectors
Cylindrical mechanical control pump head dial with red, black, and silver segments, and protruding translucent connectors

RH Pump Head

Ceramic or Zirconia Piston & Ceramic Cylinder Liner

Ideal for Laboratory, Analytical, Industrial and OEM applications

The RH pump head stands out for its durability due to its high-quality corrosion resistant materials. Its single moving part design, minimizes drift over time, providing millions of cycles of reliable, repeatable pumping.

  • Capable of repetitive dispensing with a coefficient of variation (CV) of less than or equal to 0.5%.
  • Small displacement – fully adjustable from zero to maximum.
  • With no valves to clog or leak, maintenance and downtime are significantly reduced.

Product Details

Piston Size Dispense Volume Resolution (mL/rev) Flow Rate Range (mL/min) Operating Pressure Range

1/8" DIA.

Zirconia piston only

0.003-0.025 mL/rev1

0.003-65.0 mL/min1

0-60 PSIG
0-4.1 Bar

3/16" DIA.

0.003-0.05 mL/rev1

0.003-130.0 mL/min1

0-60 PSIG
0-4.1 Bar

1/4" DIA.

0.005-0.1 mL/rev1

0.005-260.0 mL/min1

0-25 PSIG
0-1.7 Bar

9mm

0.01-0.2 mL/rev1

0.001-520.0 mL/min1

0-40 PSIG
0-2.8 Bar

Specifications

Cylinder Casing Options
  • PVDF
  • ETFE
  • Polypropylene
Operating Temperature Range

PVDF & ETFE: 0-100°C (32-212°F)

Polypropylene: 0-80°C (32-176°F)

Operating Motor Speed

0-2600 RPM

Pump Drive Modules

Explore our available pump drive modules to reach your desired flow rate. All drives are compatible with our RH Pump Heads.

If you're interested in customizing a laboratory pump, contact us today.

Customizations

  • Flush ports and isolation glands are available.
  • For low flow applications, 1/4-28 UNC threaded ports are available.

Regulatory Compliance

Green check mark and "RoHS compliant" text inside a circle REACH compliant logo with a blue circular design and a green checkmark

Disclaimer

The performance of Fluid Metering pumps may vary based on specific application conditions and individual user setups. We recommend consulting with a qualified professional or our technical support team for assistance tailored to your specific needs.

1 The dispense volume and flow rate varies based on the specific pump head and motor setup.
