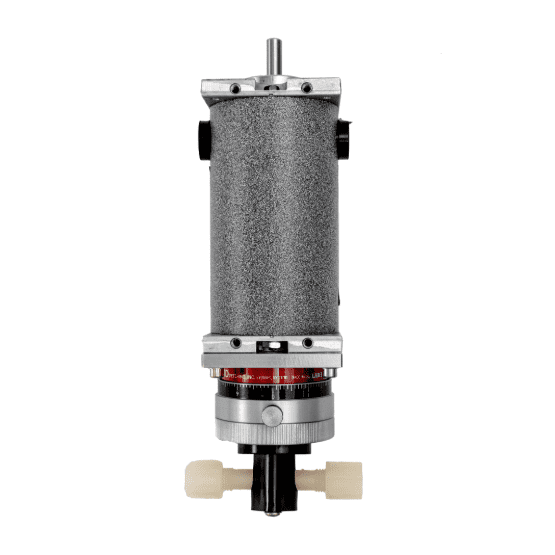

Front view of a cylindrical mechanical pump device with a gray motor, metallic caps, calibration markings, and black pump head with white connectors
Front view of a cylindrical mechanical pump device with a gray motor, metallic caps, calibration markings, and black pump head with white connectors

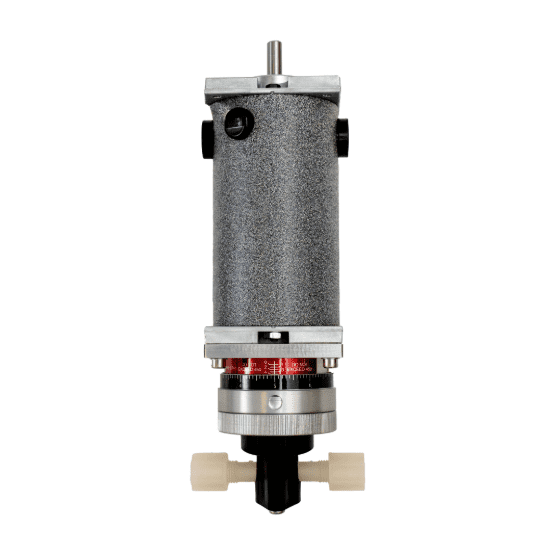

Back view of a cylindrical mechanical pump device with a gray motor, metallic caps, calibration markings, and black pump head with white connectors

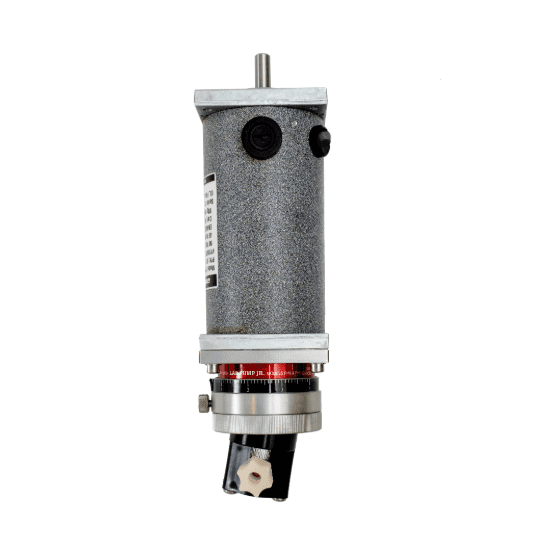

Side view of a cylindrical pump assembly with a gray motor, black fixtures, silver rod on top, and red, black, and white pump head at the bottom

*Image is only shown with the RHCKC pump head

RHV Laboratory Pump

Ideal for General Lab, Industrial Use, Medical Device & OEM Manufacturing

The RHV variable speed pump enables instant flow adjustment during operation, ensuring drift-free performance. Controlled by a V300 Controller, it allows for easy flow rate adjustments. With no valves to clog or service, the pump’s only moving part is a reciprocating piston which enhances reliability.

  • Can operate against discharge pressures up to 100 PSI.
  • Wide temperature range operates up to 100°C when using specific wetted materials.
  • Suitable for a wide range of applications due to its ability to manage different fluid viscosities and temperatures.
  • Instant flow adjustment and high-pressure capability allow for versatile use in various setups.
  • Compact design is suitable for space constrained systems.

Note: When ordering, the pump drive and head will be priced separately

Request a Quote

Product Details
Pump Head Module Dispense Volume Range (mL/rev) Flow Rate Range (mL/min) Motor Speed Range

RH Series Only

0-0.2 mL/rev1, 2

0-180 mL/min1, 2

90-1800 RPM

Specifications

Operating Pressure Range

0-100 PSIG (0-6.89 Bar)

Motor Type

90 V DC

120 or 240 V AC with V300 Controller

Regulatory Compliance

Certification logo with an abstract 'RU' symbol, 'c' on the left, and 'us' on the right Green check mark and "RoHS compliant" text inside a circle REACH compliant logo with a blue circular design and a green checkmarkCE marking logo


Disclaimer

The performance of Fluid Metering pumps may vary based on specific application conditions and individual user setups. We recommend consulting with a qualified professional or our technical support team for assistance tailored to your specific needs.

1 The dispense volume and flow rate vary based on the specific pump head and motor setup.

2 Pressure ratings dependent on selected pump heads.
